          圓箔式熱流傳感器
          產品型號:圓箔式熱流傳感器
          產品代碼:100Kw/m2
          產品價格:70000
          計量單位:支
          折 扣 率: 0
          最后更新:2016-08-22
          關 注 度:5124
          生產企業:上海能基科學儀器有限公司
          在線詢價留言
          與企業聯系時請告知該信息來自教育裝備網!
          分享到:
          更多

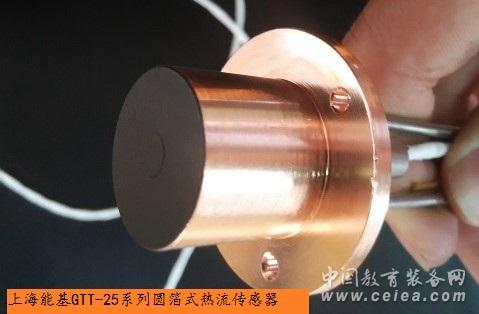

          產品詳細介紹100Kw/m2圓箔式熱流傳感器GTT-25-100采用經典的圓箔式結構,測試穩定,圓箔式戈登熱流傳感器體溫度不影響測試靈敏度。圓箔式熱流傳感器由Robert Gardon發明,上海能基提供成型的產品并可以提供不同尺寸傳感器。主要用于防火研究,消防研究
          航天和航空材料研究。
          100Kw/m2圓箔式熱流傳感器GTT-25-100的技術參數:
          熱流范圍:0-50kw/m2
          熱流精度:±3%
          100Kw/m2圓箔式熱流傳感器GTT-25-100采用圓箔式(Circular Foil type)具有非常好的線性,其測試不受傳感器體溫度影響,在204°內保持優良的測試穩定性。
          100Kw/m2圓箔式熱流傳感器GTT-25-100采用水冷降溫方式,確保了傳感器工作的可靠性,傳感器可以長時間工作。
          上海能基有更多不同量程的圓箔式戈登熱流傳感器供選擇,安裝方式及尺寸可以定制。
          The Circular Foil type heat flux sensor has standard ranges 50kw/m2. Heat flux is absorbed at the sensor surface and is transferred to an integral heat sink that remains at a different temperature than the sensor surface.
          The difference in temperature between two selected points along the path of the heat flow from the sensor to the sink is a function of the heat being transferred, and a function of the  absorbed heat flux.
          At two such points, The Circular Foil type heat flux sensor have thermocouples or thermopiles to form a differential thermoelectric circuit, thus providing a self-generated emf at the output leads that is directly proportional
          to the heat transfer rate. No power supply or thermoelectric reference junction is needed.
